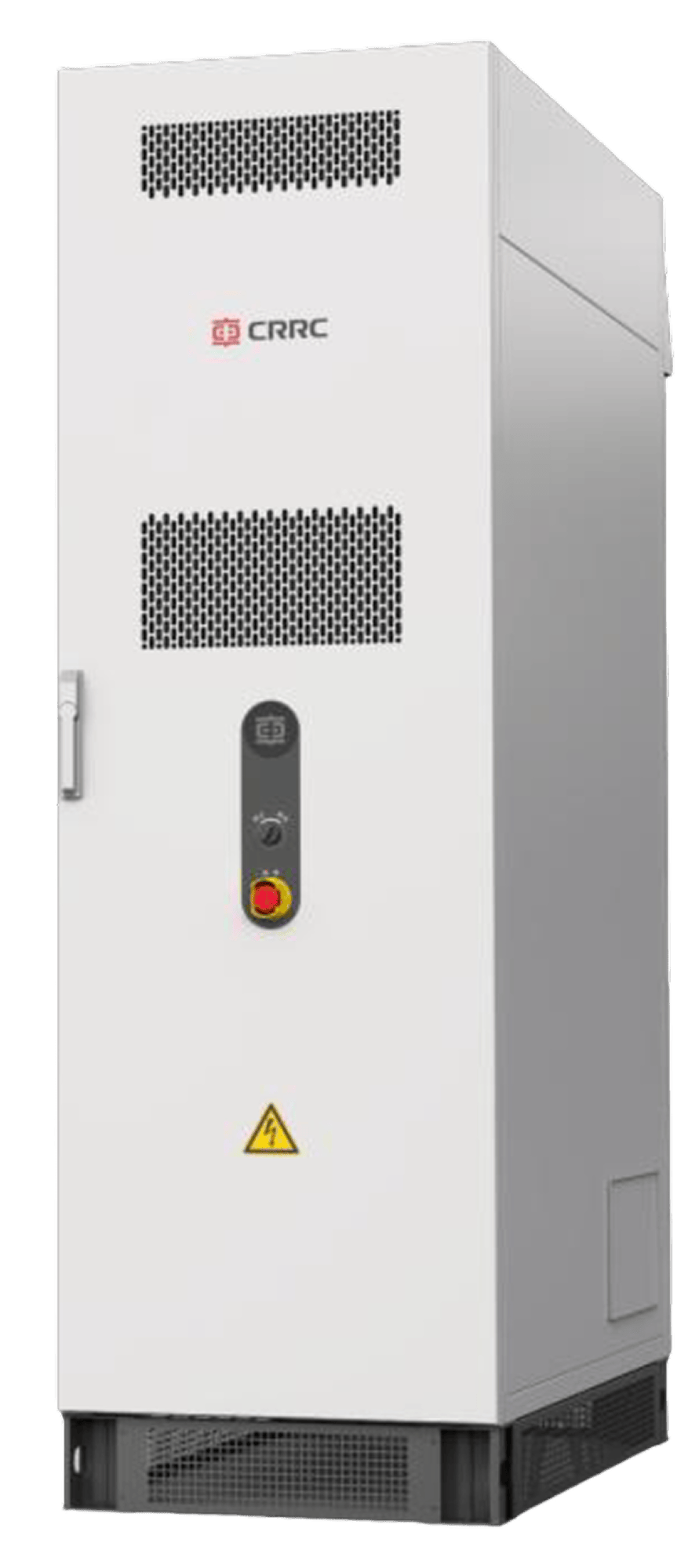

This system combines high efficiency with reliability and intelligent management. With built-in PCS, efficient cooling, and cabinet-level protection, installation and operation are quick and simple. Suitable for various weather conditions.
Advanced ANPC three-level topology, max. efficiency ≥99%DC1500V system with wide input voltage rangeHigh system reliability, long-lasting 1.1 times overload operation, 1.2 times overload operation for no less than 1 minEquipped with explosion venting device, higher system safetyParameter | Description |
Max. DC voltage | 1500 V |
DC voltage range for nominal power | 1000V~1500V |
Max. DC current | 1122A |
No. of DC inputs | 4 |
Parameter | Description |
Rated output power | 1000 kV A@51℃ |
Max output power | 1100 kV A@30℃ |
Max AC current | 920A |
Rated AC voltage | 690V |
AC voltage range | 586.5~759V |
Nominal grid frequency | 50Hz/60Hz |
Grid frequency rage | 45~55Hz/55~65Hz |
AC current THD | <3%@Pn |
Power factor at nominal power/ Power factor range | >0.99 / 1 leading ~ 1 lagging |
Adjustable reactive power | -100%~100% |
Feed-in phases/ Connection phases | three-phase three-wire |
Parameter | Description |
Rated AC voltage | 690V |
AC voltage Distortion | <3% (Linear load) |
DC voltage component | <0.5% Un |
Rated voltage frequency | 50Hz/60Hz |
Parameter | Description |
Max. efficiency | ≥99% |
Parameter | Description |
DC protection | Disconnector + Fuse |
AC protection | Circuit breaker |
Surge protection | DC Type II/AC Type-II |
Grid monitoring | Yes |
Ground fault monitoring | Yes |
Insulation monitoring | Yes |
Overheating protection | Yes |
Parameter | Description |
Dimensions(W*D*H)* | 700*1701*2300mm |
Weight* | 850kg |
Protection degree | IP65 |
Cooling method | Forced air cooling |
Max. operating altitude | 4000m（>3000m derating) |
Operating ambient temperature range | -35℃~ 60℃（>51℃ derating) |
Allowable relative humidity range | 0 ~ 100% |
Communication | RS485/Ethernet/CAN |
This datasheet is for preliminary selection reference only. Final specifications and
performance are subject to the supply contract.
IEC 62477,IEC 61000-6-2/-4,IEC 62920,IEC 61727,IEC 62116,EN 50549-2/-10Contact us to find out how to tailor the system to your project.
