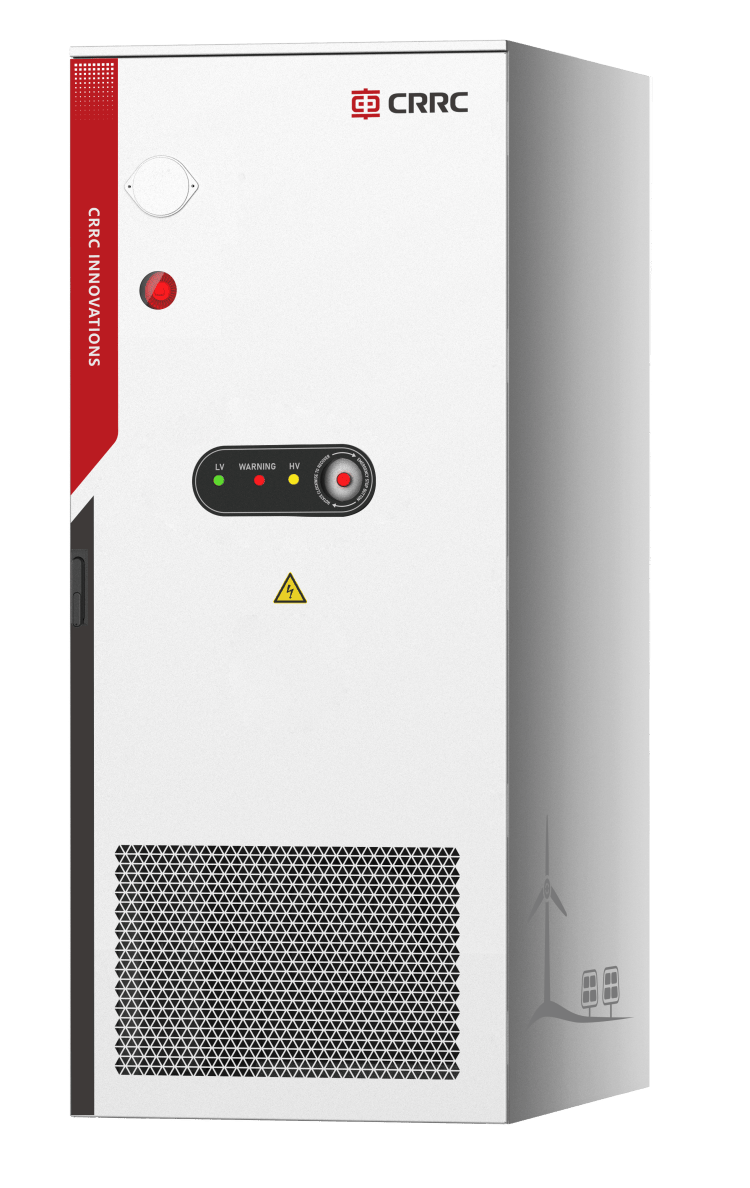

CESS-M261-EU is a DC1000V energy storage system with integrated PCS, equipped with an intelligent platform for real-time operation monitoring. It provides full control and maximum efficiency.
Explosion-proof design
AC connection in one unit, compact design
Easy expansion and flexible configurations
Optimization of costs and energy consumption
online monitoring, fault registration, and easy diagnostics
Parameter | Description |
Cell capacity | LFP / 314Ah |
Nominal voltage | DC 832V |
Operating voltage range | DC 676V – DC 936V |
Battery configuration | 260S1P |
*System efficiency measured as the ratio of discharged to charged energy after a full cycle at an ambient temperature of 25°C on the AC 400V side. |
CESS-M261-EU is an intelligent and compact DC1000V energy storage system with integrated PCS, allowing for full real-time operation monitoring. Modular design, high efficiency, and an advanced fire protection system make the system safe, reliable, and easy to use.
Parameter | Description |
AC nominal voltage | AC 400V |
AC connection | 3L+N+PE |
Rated power | 125 kW |
Current harmonics | <3% |
Power factor | -1 ~ +1 |
*System efficiency measured as the ratio of discharged to charged energy after a full cycle at an ambient temperature of 25°C on the AC 400V side. |
CESS-M261-EU is an intelligent and compact DC1000V energy storage system with integrated PCS, allowing for full real-time operation monitoring. Modular design, high efficiency, and an advanced fire protection system make the system safe, reliable, and easy to use.
Parameter | Description |
System efficiency | ≥90%* |
Relative humidity | 0–95% |
Maximum operating altitude | 4000 m (derating above 2000 m) |
Degree of protection | IP54 |
Dimensions | 1400 × 930 × 2300 mm |
Weight | ≤2.5 t |
Communication protocol | Modbus TCP, IEC104, IEC61850 |
Battery cooling | Intelligent liquid cooling / heating |
Fire detection | Heat and smoke sensors, alarm siren, and strobe |
Fire suppression | Aerosol system |
Noise level @1m | ≤75 dB(A) |
Certificates | IEC62619, IEC63056, IEC62933-5-2, UL9540A, IEC62477-1, EN61000-6-2/4, CE-RED, UN38.3, UN3480, REACH |
*System efficiency measured as the ratio of discharged to charged energy after a full cycle at an ambient temperature of 25°C on the AC 400V side. |
CESS-M261-EU is an intelligent and compact DC1000V energy storage system with integrated PCS, allowing for full real-time operation monitoring. Modular design, high efficiency, and an advanced fire protection system make the system safe, reliable, and easy to use.
Contact us to find out how to tailor the system to your project.
